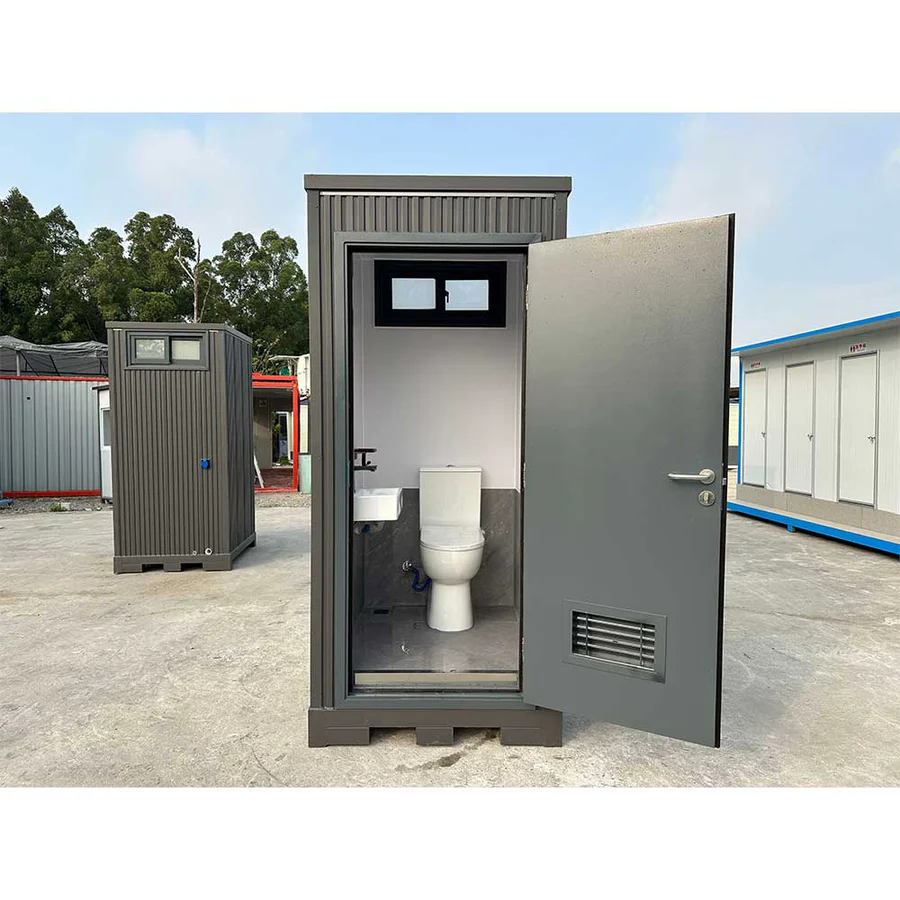

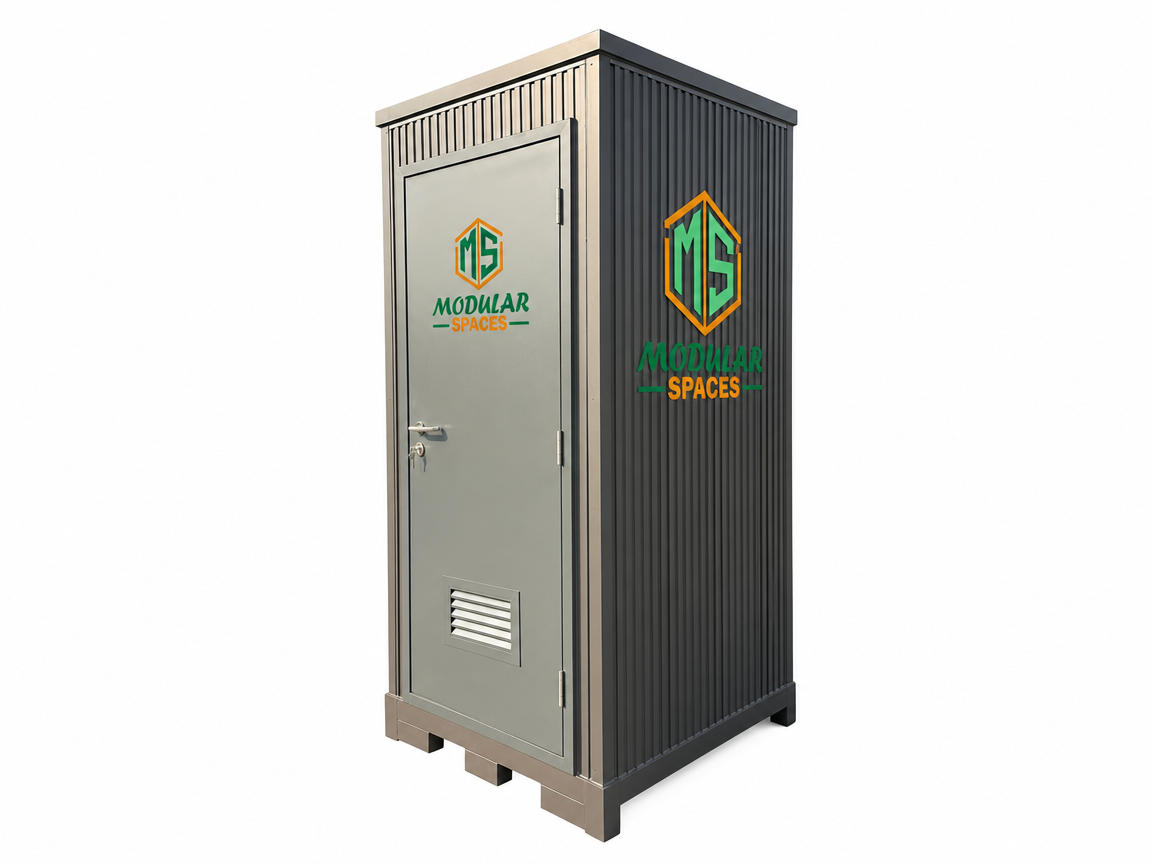

Specifications (U.S. Units):
- Overall Size(For Single Unit): 3.7 ft (W) × 4.2 ft (D) × 7.5 ft (H)
- Overall Size(For Dual Unit): 4.20 ft (L) × 7.38 ft (W) × 7.55 ft (H)
-
Forklift Pockets: Integrated for easy relocation using a standard forklift
-
Main Frame: 3.15″ × 3.15″ × 0.06″ (80 × 80 × 1.5 mm) galvanized square steel tubing
-
Secondary Frame: 0.8″ × 1.57″ × 0.06″ (20 × 40 × 1.5 mm) rectangular steel tubing
-
Wall Panel Columns: 2″ × 2″ × 0.05″ (50 × 50 × 1.2 mm) galvanized square tubing
-
Welded Keel Frame: 1″ × 0.98″ × 0.04″ (50 × 25 × 1.0 mm) galvanized tubing
- Weight: 392 kg ≈ 864.21 lb.
Walls, Roof & Floor:
-
External Wall Panels: 0.63″ (16mm) thick metal embossed insulated panel
-
Interior Walls: 2″ (50mm) fire-retardant color steel sandwich panels with 1.18″ × 1.18″ × 0.04″ (30 × 60 × 1.0 mm) galvanized supports
-
Roof: Galvanized steel sheet with formed bends for strength and drainage
-

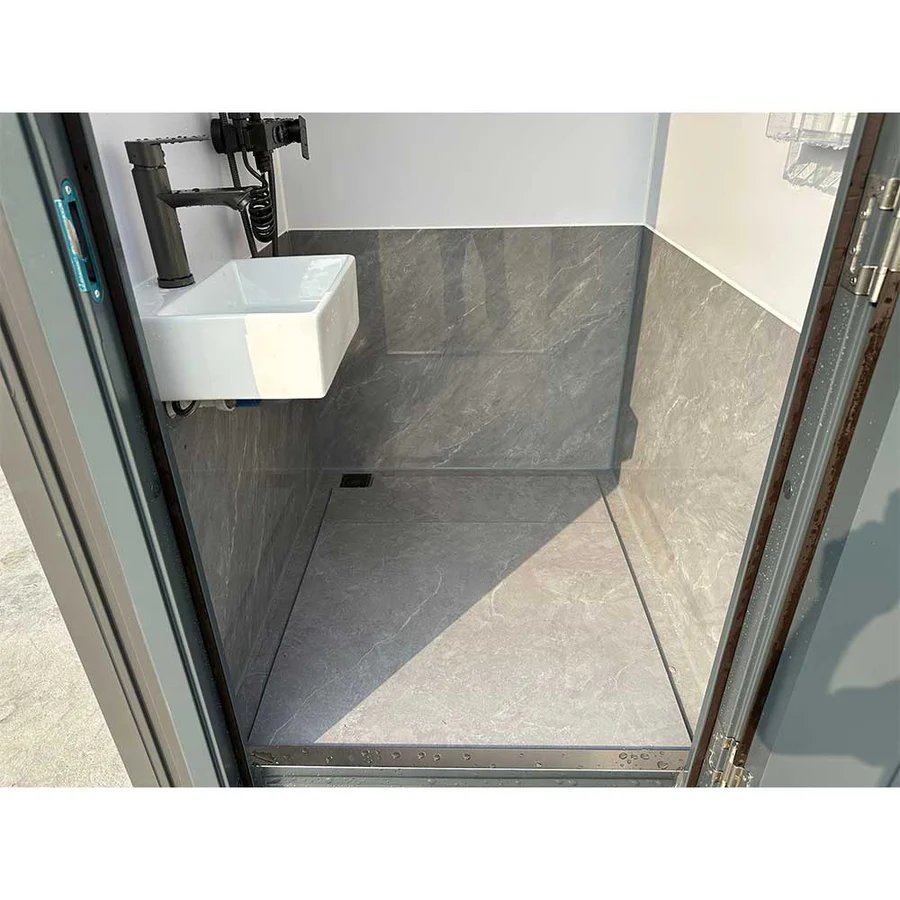

Flooring: Ceramic tiles
Doors & Windows:
-

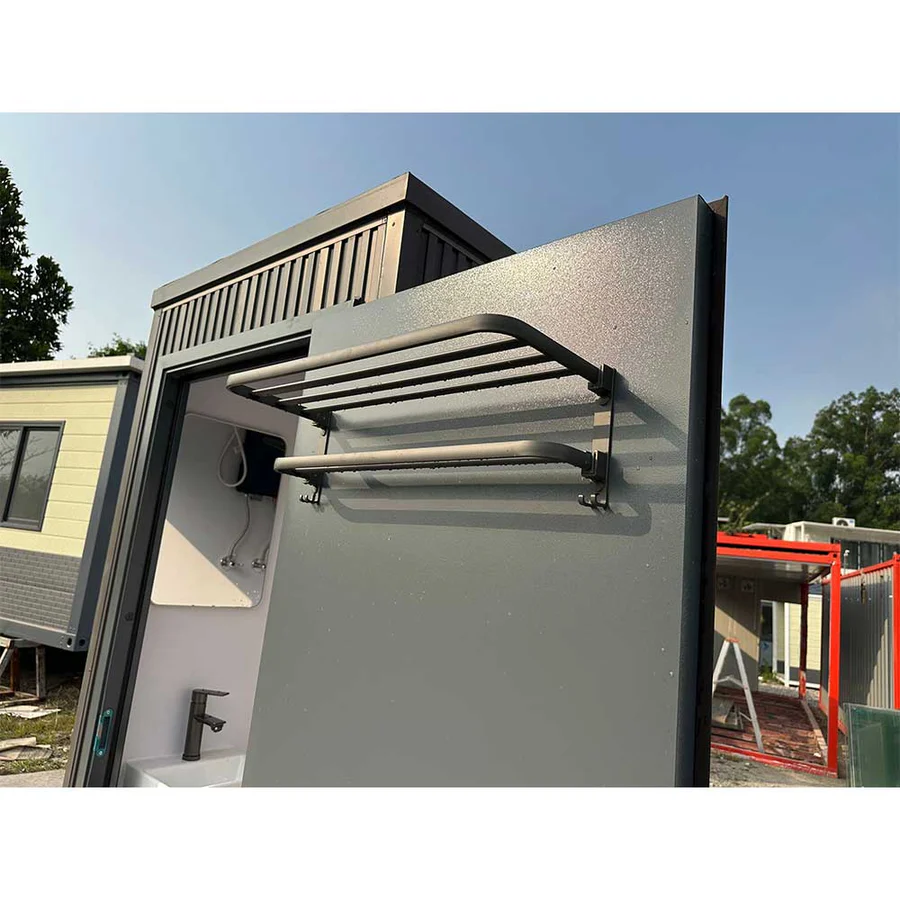

Door: Reinforced steel door, specially made for container structures
-
Includes: Lever handle lock and aluminum alloy ventilation louver
-
-

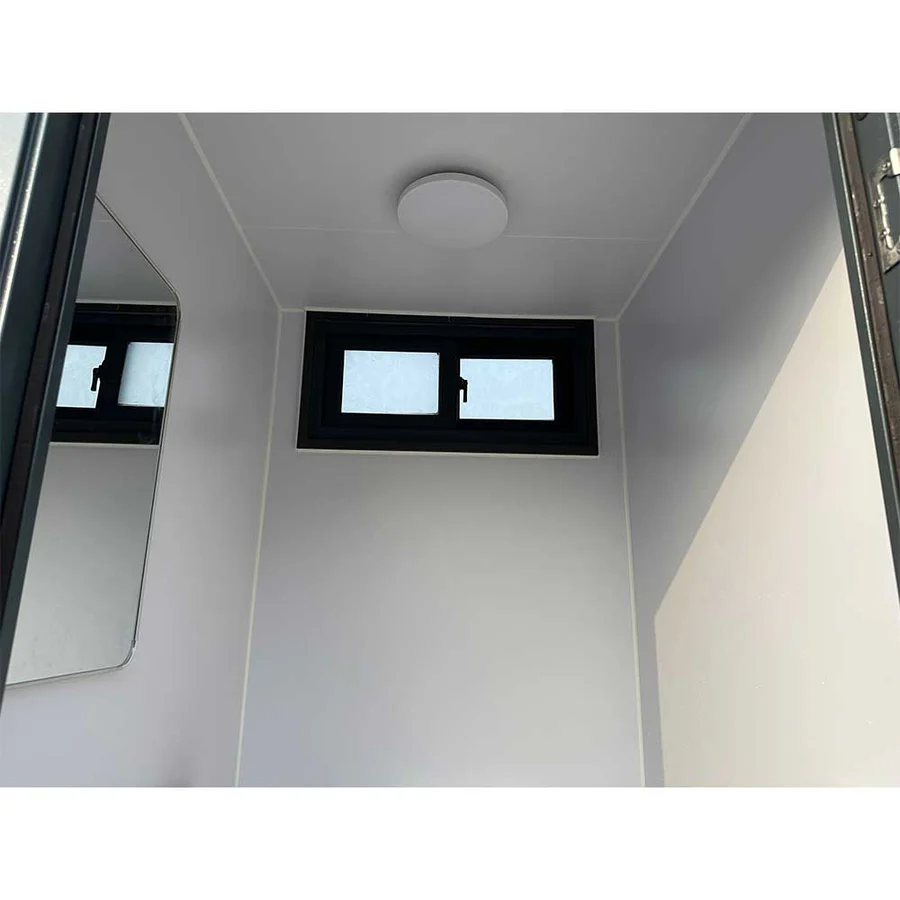

Window: Aluminum alloy sliding window for light and airflow
Electrical & Fixtures:
-

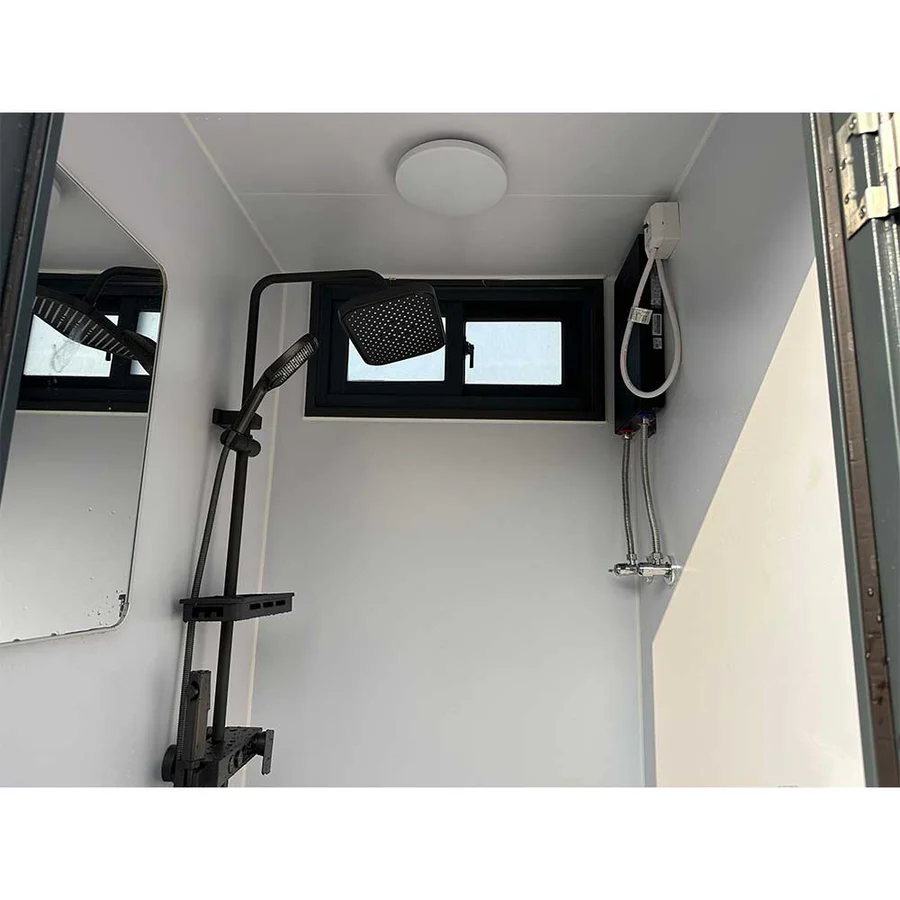

Lighting: Ceiling-mounted light fixture
-
Wiring: Pre-installed with 8.2 feet (2.5 meters) of electrical wiring
-
Power Points: Standard U.S. outlets and switches
Bathroom Fixtures:
-

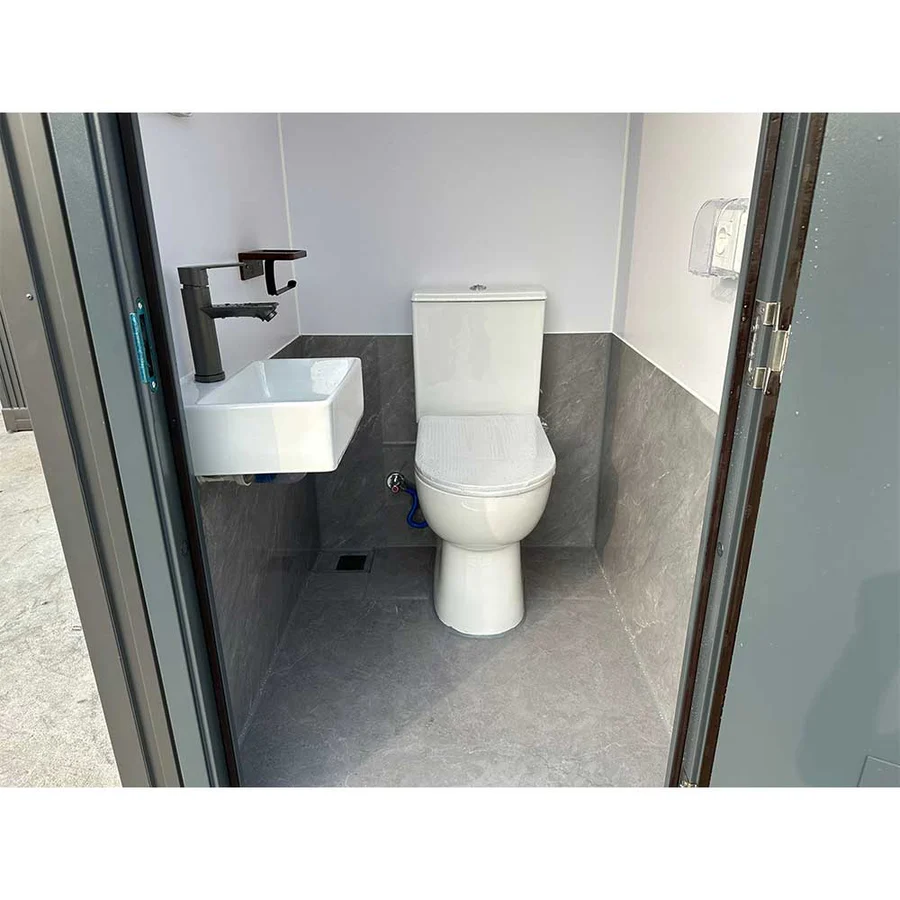

Toilet: CE-certified flush toilet
-

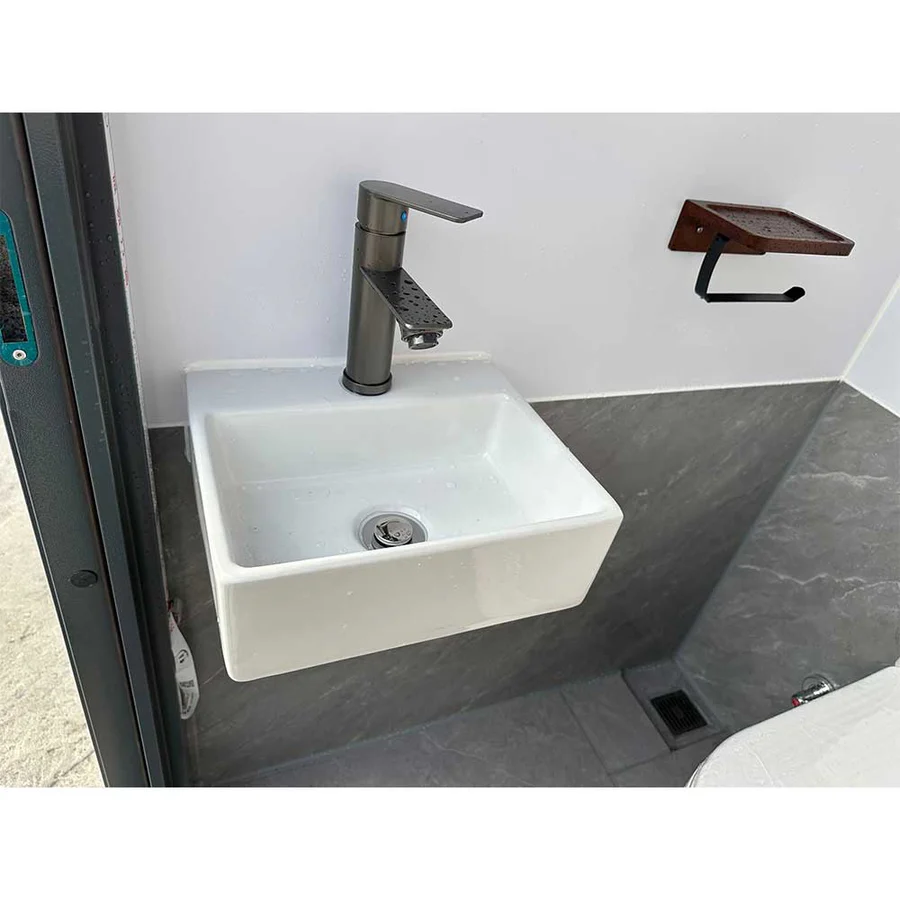

Sink: Ceramic washbasin with gunmetal gray stainless steel faucet
-

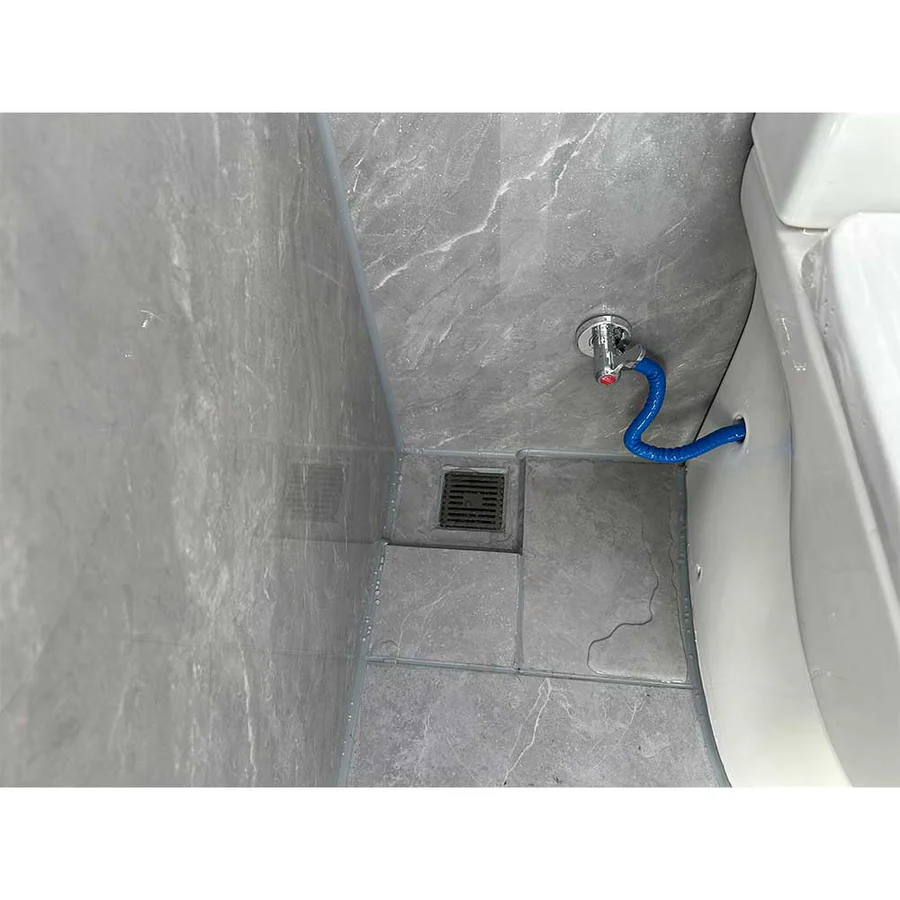

Drainage: Odor-proof stainless steel floor drain
-
Accessories: Mirror, tissue holder
Plumbing Connection Sizes (US Standard):
-
110 mm (toilet drain pipe) → 4.33 inches (commonly referred to as 4-inch pipe)
-
20 mm (water inlet pipe) → 0.79 inches (≈ 3/4-inch pipe)
-
50 mm (sink drain pipe) → 1.97 inches (≈ 2-inch pipe)
Ready to Use.
This unit comes preassembled and can be placed or relocated using a forklift. Ideal for temporary or semi-permanent use.
